Creating a workflow using MoEngage as the trigger source allows you to process WhatsApp delivery tracking events and customer communication workflows directly from MoEngage integrations.

By configuring the MoEngage trigger inside Fyno, you can connect your WhatsApp delivery tracking URL, associate a preferred WhatsApp integration, and automate downstream workflows based on customer engagement or delivery events.

This setup helps centralize communication orchestration while ensuring that WhatsApp delivery updates and interaction flows are handled seamlessly across systems.

MoEngage Trigger Setup

Navigate to the Workflow section from the left navigation panel.

If you have already created workflows, you will see all the existing workflows in a card view. Click Create+ to create a new workflow.

Once you click +Create, the Workflow canvas opens with the list of available triggers.

Prerequisites

Before configuring a MoEngage trigger, ensure the following prerequisites are completed:

A valid MoEngage account is already configured externally.
Your WhatsApp integration is configured inside Fyno.
The delivery tracking URL is available from your MoEngage sender configuration.
Required APIs and webhook endpoints are already allowlisted if downstream API actions are involved.
You have clarity on the event payload structure MoEngage sends.
Your WhatsApp Business account is active and properly connected.

What is MoEngage Trigger?

The MoEngage trigger allows workflows to start based on delivery tracking events and engagement activities configured through MoEngage. This trigger is commonly used for:

WhatsApp delivery tracking
Event-driven customer communication
Delivery status monitoring
Customer engagement workflows
Notification orchestration
Campaign response handling

A common use case would be:

A WhatsApp notification is triggered from MoEngage.
Delivery tracking updates are sent to Fyno.
Fyno receives the delivery event.
The workflow processes the event.
Additional APIs, conditions, subflows, or user profile updates are executed based on delivery status or engagement data.

This helps businesses build centralized automation workflows around customer communication events.

How to Configure a MoEngage Trigger

To configure a MoEngage trigger in Fyno, follow the below steps.

Navigate to the Workflow section from the left navigation panel.

If you have already created workflows, you will see all the existing workflows in a card view. Click Create+ to create a new workflow.

Once you click +Create, the Workflow canvas opens with the list of available triggers.

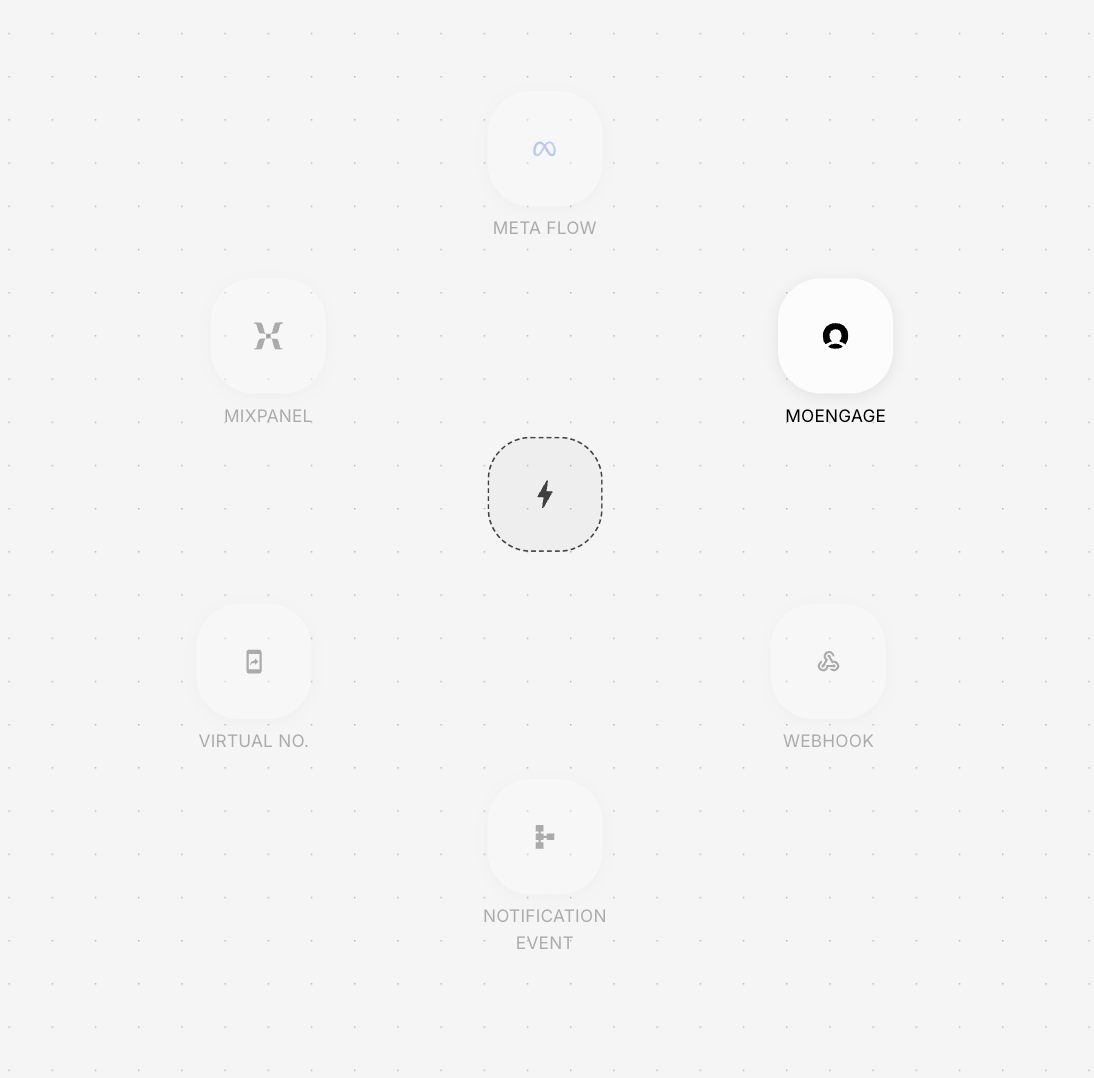

From the trigger selection canvas, drag and drop MoEngage under Triggers into the Workflow canvas.

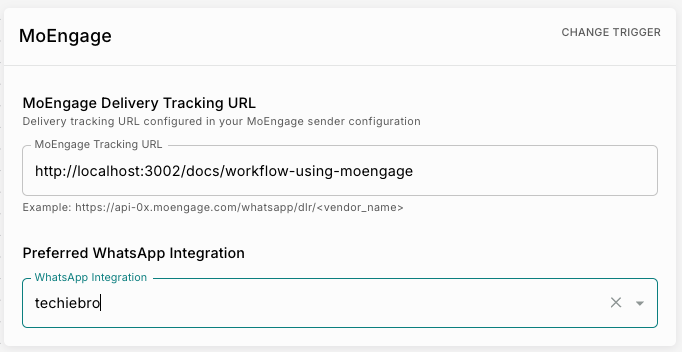

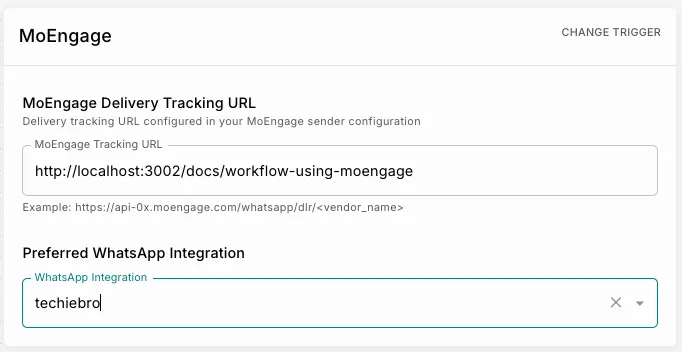

Once the MoEngage trigger is added, the configuration screen opens.

Under MoEngage Delivery Tracking URL, configure the delivery tracking URL from your MoEngage sender configuration.

Example format:

https://api-0x.moengage.com/whatsapp/dlr/<vendor_name>

This URL allows MoEngage delivery tracking events to be routed correctly through the workflow.

Under Preferred WhatsApp Integration, select the WhatsApp integration that should be associated with this workflow.

This integration determines which WhatsApp Business Account will handle the communication flow.

Click Save to save the workflow configuration.

Once saved successfully, the workflow becomes active and starts processing MoEngage delivery tracking events.

MoEngage Delivery Tracking URL

The Delivery Tracking URL is one of the most important parts of the MoEngage trigger configuration.

This URL acts as the endpoint through which delivery events are received and processed inside Fyno workflows.

Typical delivery events include:

Sent
Delivered
Read
Failed
Replied

These events can then be used to trigger additional workflow logic dynamically.

Why Delivery Tracking is Important

Delivery tracking helps businesses:

Monitor message delivery performance
Detect failures automatically
Trigger fallback communication channels
Update customer engagement statuses
Create operational alerts
Build analytics and reporting workflows

For example:

If a WhatsApp message fails → trigger SMS fallback
If a message is delivered → update customer profile
If a customer replies → invoke a support workflow

Preferred WhatsApp Integration

The Preferred WhatsApp Integration determines which WhatsApp Business Account should be associated with the workflow execution.

Only configured WhatsApp integrations available inside the workspace will appear in the dropdown.

This integration is used for:

Message delivery tracking
WhatsApp event association
Workflow routing
Communication orchestration

Using the correct integration ensures that delivery tracking and engagement events are mapped to the correct WhatsApp sender configuration.

How MoEngage Workflows Execute

Once the trigger is configured, the workflow behaves like a standard Fyno workflow.

After the trigger node, you can add:

API blocks
User Profile updates
Subflows
Conditions
Notification actions

The MoEngage trigger acts as the workflow entry point, while the downstream nodes determine how the event should be processed.

Actions Supported in MoEngage Workflows

API

API actions can be used to process delivery tracking events dynamically.

Common examples include:

Updating CRM systems
Fetching customer details
Logging delivery statuses
Triggering support workflows
Syncing analytics systems
Updating campaign statuses

API Configuration

To configure an API block inside the workflow, follow the below steps.

Drag and drop the API action onto the workflow canvas and connect it to the MoEngage trigger.

Once added, the API configuration panel opens.

Under Allowlist URL, select the verified allowlisted endpoint that should be called.

Only URLs added in the Allowlist section will appear here.

Select the HTTP Method.

Supported methods include:

GET
POST

The selected method should align with your backend implementation.

Select the Content Type for the payload.

Available options include:

None
JSON
Form Data
URL Encoded Form
XML
Text

JSON is commonly used for delivery event payload handling.

(Optional) Configure Headers if authentication or metadata is required.

Example:

Authorization: Bearer <token>

Configure the request payload using workflow variables and delivery event data.

Example:

1 {
2   "customer_id": "{{customer_id}}",
3   "delivery_status": "{{delivery_status}}",
4   "message_id": "{{message_id}}"
5 }

Conditions in MoEngage Workflows

Condition blocks can be used to branch workflow execution based on delivery or engagement events.

Examples:

If delivery status is delivered → update profile
If delivery status is failed → trigger retry flow
If customer replied → invoke support workflow
If read receipt received → mark engagement success

Supported operators include:

Equals
Not Equals
Contains
Starts With
Ends With
Greater Than
Less Than
Greater than or Equal
Less than or Equal
Is
Is Empty
In
nin
is boolean

Conditions help orchestrate dynamic communication workflows efficiently.

Subflows

Subflows help modularize reusable communication logic across workflows.

Common use cases include:

Retry workflows
Fallback channel handling
Delivery failure management
Customer support escalation
Analytics synchronization

This improves maintainability and workflow scalability.

User Profile Updates

The User Profiles action allows you to store or update customer engagement attributes during workflow execution.

Examples include:

Last delivery status
Last engagement timestamp
Preferred communication channel
Campaign interaction status
Support escalation flags

This helps maintain continuity across future campaigns and engagement journeys.

Notification Event Integration

MoEngage workflows can also work alongside notification event triggers for centralized communication orchestration.

This enables workflows such as:

Multi-channel engagement flows
Unified delivery tracking
Customer engagement analytics
Event-driven campaign automation

Example Workflow Scenarios

Delivery Failure Retry Workflow

A common delivery retry workflow may behave as follows.

MoEngage sends a delivery failure event to Fyno.

The workflow checks the delivery status using a Condition block.

If the message failed, an API block logs the failure into the CRM system.

A fallback SMS workflow is triggered using a Subflow.

The User Profile is updated with the latest delivery status.

Customer Engagement Tracking Workflow

Another common workflow may behave as follows.

A customer reads a WhatsApp message.

MoEngage sends the read receipt event to Fyno.

The workflow updates the customer engagement profile.

An analytics API is triggered for reporting purposes.

The customer is moved into the next engagement campaign automatically.

Best Practices

Always validate delivery event payloads before workflow processing.
Use Conditions to handle retry and fallback logic properly.
Keep API calls optimized for high-frequency delivery events.
Use Subflows to modularize reusable communication logic.
Maintain meaningful variable naming conventions.
Test workflows thoroughly before enabling them in production.
Monitor workflow executions regularly to identify delivery anomalies.
Ensure the WhatsApp integration selected matches the MoEngage sender configuration.

Important Things to Know

Ensure the delivery tracking URL is configured correctly inside MoEngage sender settings.
Incoming payload structures may vary depending on MoEngage event configuration.
Incorrect WhatsApp integration mapping can result in delivery tracking inconsistencies.
High-frequency delivery events may generate large workflow volumes.
Use Restricted workflows for production-grade implementations wherever possible.
API rate limiting should be considered when processing large-scale engagement events.
Retry and fallback logic should always be implemented for failed deliveries.

How to raise Approval requests

If your workspace has maker-checker workflow enabled for template management, the ‘Go Live’ action requires an additional approval step. You’ll need to choose from your designated approvers who will review and authorize the template changes.

You can read more about it here
